Centerflange Housed Bearing Assembly

Centerflange Housed Bearing Assembly (FL)

  • ID: .5 to 1.25 in.
  • Available in 2-bolt and 3-bolt round configurations
  • Ideal in tight axial space arrangements
  • Intended for applications which have little or no shaft misalignment (4° or less)

Axial space constraints can often be overcome with Lutco centerflange assemblies. These units are designed with the flange positioned at the center of the bearing width. Centerflanges consist of a Lutco semi-precision bearing or precision bearing seated between two welded flangettes.

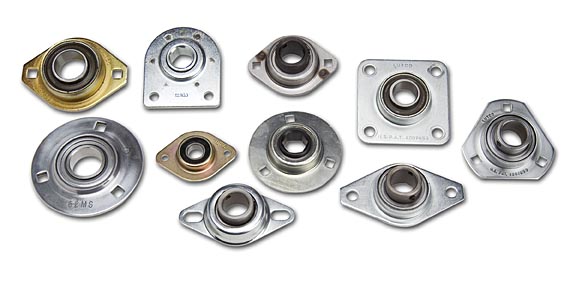

Lutco Housed Bearing Assemblies

All Housed Bearing Assemblies share the following features:

  • Inch dimensions
  • Moderate Loads
  • Various bore configurations available
  • Zinc plated with clear or yellow dichromate for corrosion protection
  • Alternate plating options also available
  • Bearings are supplied prelubricated
  • All units are non-relubricatable
  • Limiting Speed is 1200 RPM (using Lutco bearing)
  • Higher speeds available with precision bearings

housed bearing assemblies

Contact us to find out why leading OEMs rely on Lutco!

Product Design Guide

The Lutco Design Guide has detailed information including product specifications, technical drawings & measurements, load rating and testing data, interchange tables, conversion tables, unique applications, and more.
