A leading manufacturer of building materials faced an ongoing challenge in their high-volume production of gypsum board, aka drywall, for walls and ceiling tiles. Each week, hundreds of hanger bearings needed replacement to keep production on track in a high-temperature environment filled with abrasive gypsum dust. Frequent bearing failures in critical conveyor systems, costly downtime, and long lead times from their supplier had created a compound problem, and regular maintenance windows were proving insufficient to mitigate these threats to production.
Fed up with rising costs and inconsistent part availability, the manufacturer began their search for a more dependable solution, selecting Lutco to supply custom-engineered bearings that would better withstand the harsh conditions of gypsum board production. By providing a durable, cost-effective solution backed by on-demand inventory, Lutco enabled smooth, uninterrupted operations with significant savings on maintenance and replacement costs.
Industrial Gypsum Board Production Requires Robust, Reliable Parts

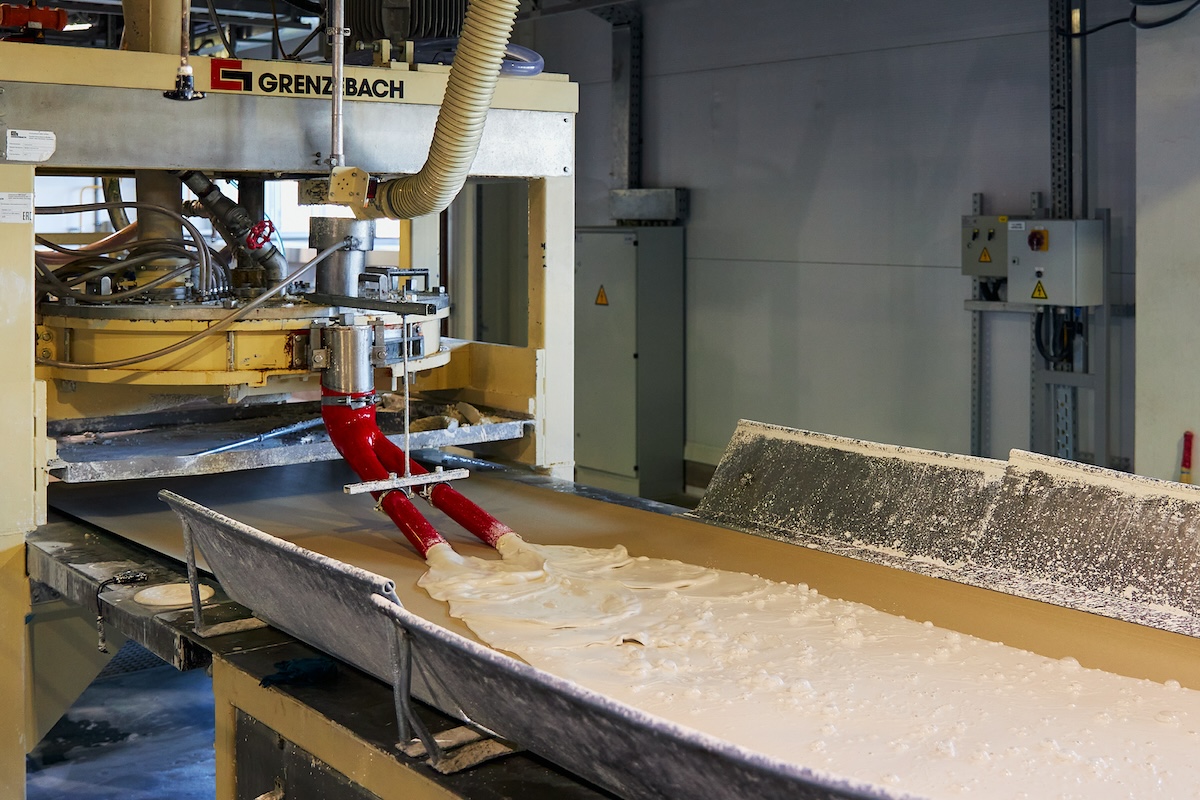

Gypsum board, commonly known as drywall, is manufactured through a continuous, multi-step process that transforms raw gypsum into durable, high-quality building material. The process begins by combining gypsum powder, water, binders, and foaming agents to create a wet slurry. This slurry is deposited onto a moving conveyor lined with paper, forming the board’s front face. Another sheet of paper is added to the top, sandwiching the slurry and compressing it into a flat layer as it moves along the line. The slurry sets as it travels through this conveyor system, beginning to form a cohesive board structure.

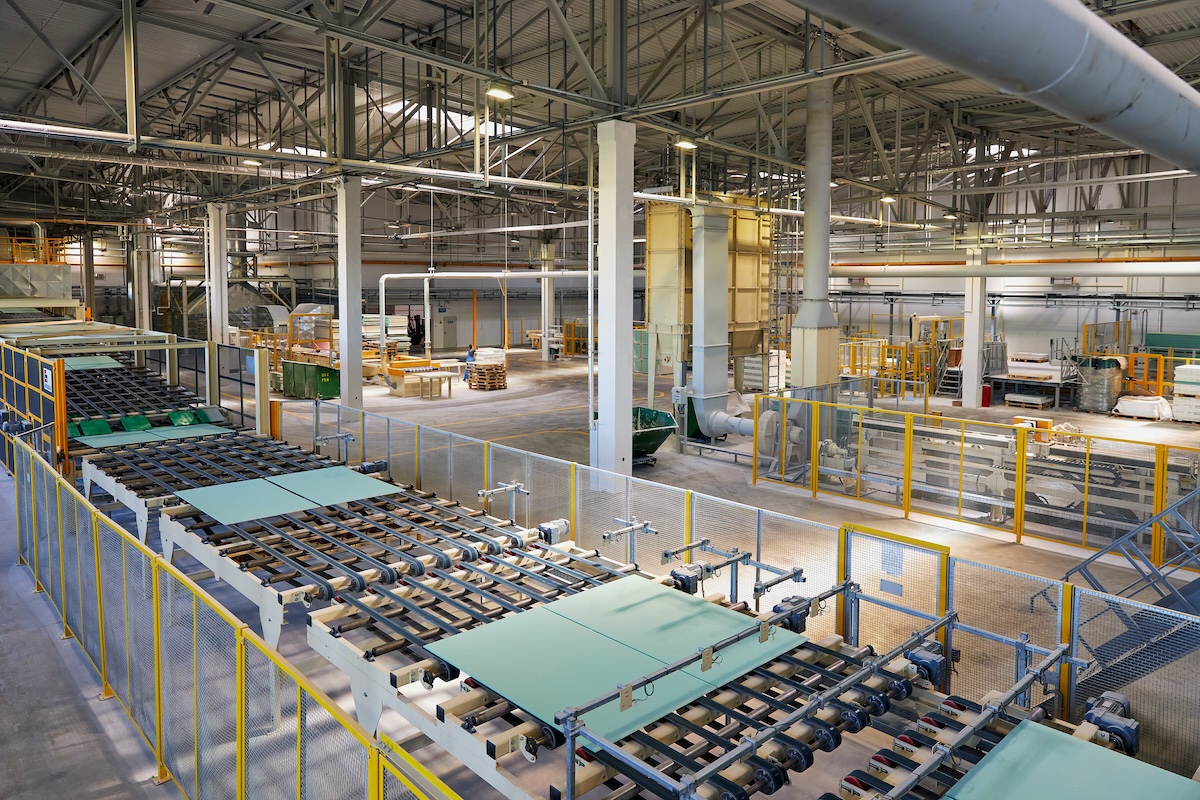

Once the gypsum board has achieved enough initial strength, it enters the most critical stage: the drying process. In this phase, the boards move into long, high-temperature drying ovens, where they are exposed to temperatures ranging from 350°F to 500°F (175°C to 260°C). These kilns remove any residual moisture, solidifying the gypsum structure to create a strong, reliable board for use in walls and ceilings. Multiple conveyor levels maximize production throughput, with each level lined with rollers and supported by hanger bearings. This system is integral to maintaining the board’s uniform thickness and structural integrity as it dries.
Precision Engineering High-Performance Bearings for Construction Supply Manufacturing
The extreme conditions within the drying kilns presented significant engineering challenges. Operating continuously at high temperatures and filled with abrasive gypsum dust, these kilns quickly wear down standard bearings. Under such conditions, bearings can fail within weeks, causing rollers to seize and halt conveyor movement.
With their previous supplier, the client faced high costs and inconsistent lead times for replacement parts, creating frequent delays that disrupted production schedules. These delays made it impossible to address all bearing failures during routine maintenance, highlighting the need for a more reliable, durable solution to keep production on track.
Advanced Tooling and Prototyping for Custom Industrial Bearings
Lutco’s structured project management strategy was instrumental in the success of this custom solution. Weekly project reviews allowed Lutco to maintain alignment with customer expectations and adjust for any emerging challenges. This collaborative approach, combined with Lutco’s technical capabilities, facilitated a smooth progression from prototype to production-ready components.
From the initial design phase to full production, Lutco adhered to a 16-week project timeline that followed Lutco’s Proven Process. Some highlights of this implementation include:
-

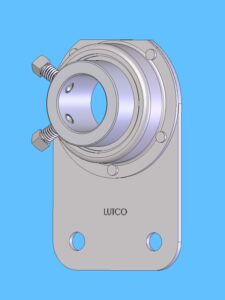

- Design and Simulation: Using CAD and simulation software, Lutco’s engineers created a model of the bearing system, simulating thermal and particulate stress to preempt potential failure points. This process allowed the team to refine the bearing design, optimizing it for the high-impact loads and rotational demands of a multi-tiered conveyor system.

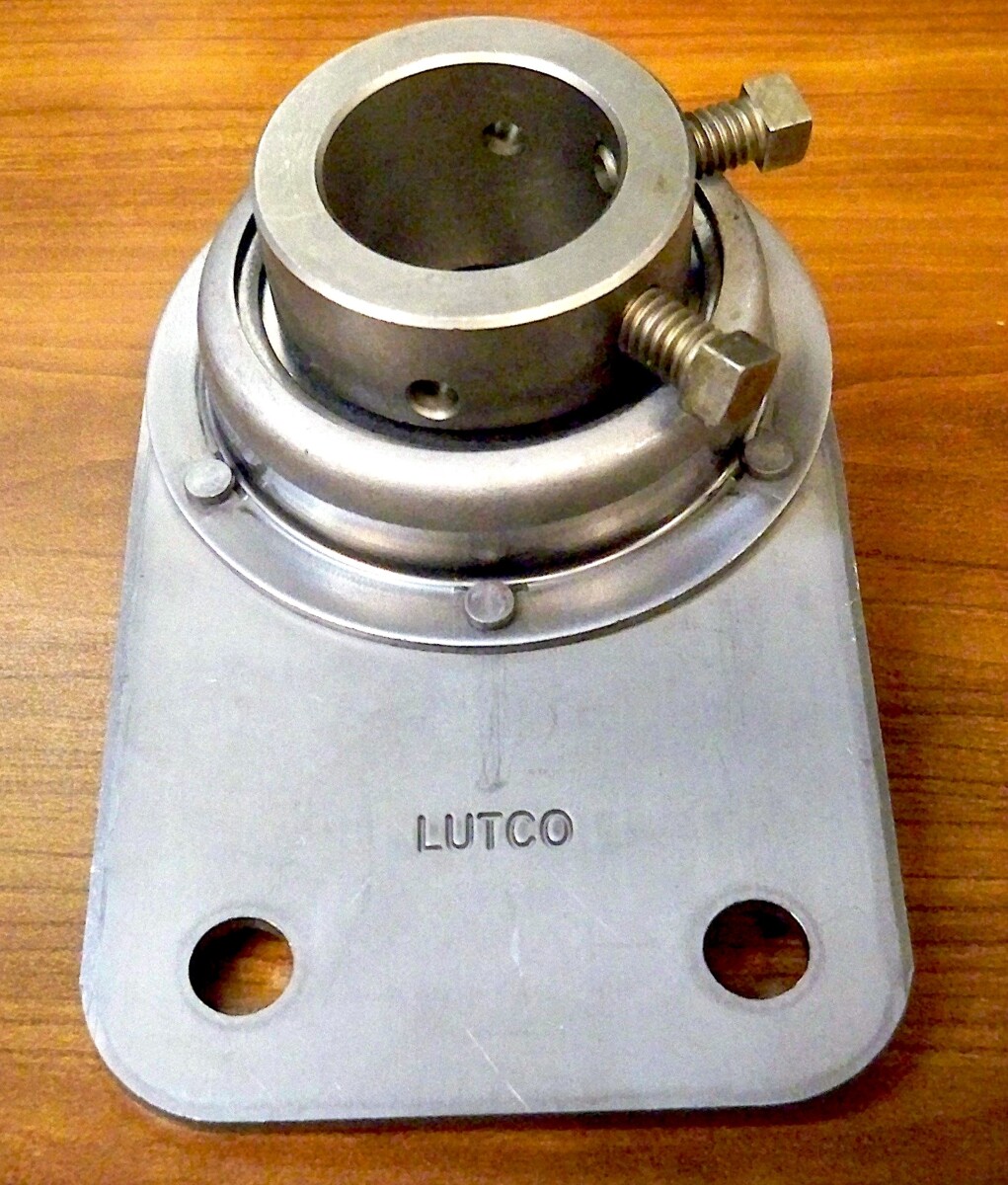

- Prototyping and Tooling: In just a few weeks, Lutco’s engineers and toolmakers collaborated to develop and fine-tune tooling setups. The prototyping process leveraged both in-house CNC machining centers for precision parts and modern layout assembly tables to streamline component assembly and adjustments.
- Testing and Quality Control: Lutco’s stringent quality assurance protocols included calibrated gauges and Coordinate Measuring Machines (CMMs) for dimensional verification. Additionally, parts were subjected to high-temperature testing and resistance evaluations to ensure their ability to maintain structural integrity under prolonged thermal exposure. The final bearing system exceeded industry standards for durability and load-bearing capacity in high-heat environments.
Have a question for our engineers?
Let the bearing experts at Lutco help you find the ideal solution for your industrial application. Our team specializes in custom-engineered, high-performance bearings and mechanical components that withstand the toughest environments.
Contact Lutco’s Engineering Team to discuss how we can support your specific needs and enhance your production line’s efficiency.
Durable and Cost-Effective Custom-Engineered Bearings for Industrial Applications
Lutco’s engineering team began by assessing the furnace system’s specifications and identifying the operational stresses the bearings would need to endure in the gypsum production environment. With these insights, they designed a replacement bearing capable of reliable performance under extreme conditions, including high temperatures and abrasive gypsum dust exposure.
To keep costs manageable and reduce lead times, Lutco adapted existing components to align precisely with the client’s functional needs. This approach allowed for rapid prototyping and streamlined production, delivering a high-performance, custom-engineered bearing solution without the need for costly tooling from scratch while ensuring perfect compatibility with the existing furnace system.
Design Considerations and Material Selection for High-Durability Bearings
Material selection was critical to ensuring durability under intense thermal exposure and abrasive conditions. Lutco’s engineers chose heat-treated steels and other high-resilience materials specifically suited to withstand the demands of gypsum processing. Each bearing underwent rigorous testing to confirm its ability to maintain integrity and performance over time, even in the harshest conditions.
Lutco’s advanced production capabilities were key to achieving this success. Using state-of-the-art modeling software, CNC machining, and CMM inspection, the engineering team produced each component to precise tolerances, ensuring consistent quality across all units. Combining manual and automated quality control measures, Lutco was able to deliver a reliable, durable product that met the client’s operational needs and upheld stringent industry standards.
Operational Benefits of Custom Bearing Replacement
The initial delivery of 1,200 hanger bearings allowed the client to restore operational continuity and meet their strict maintenance schedules. With Lutco’s bearings, the client experienced:
- Enhanced Operational Efficiency: The bearings demonstrated reliable performance across multiple weekends, requiring fewer replacements than previous solutions, thus minimizing maintenance time. This operational improvement allowed production to resume more quickly, maximizing throughput.
- Reduced Total Cost of Ownership: By providing a competitively priced bearing that met durability demands, Lutco enabled the client to reduce maintenance costs related to frequent replacements and high part costs from their former supplier, resulting in an overall reduction in TCO.
- Real-Time Availability: Lutco’s commitment to on-hand inventory enabled the client to implement a just-in-time approach to bearing replacement. This eliminated downtime and reduced the client’s need to stockpile replacement components.
Engineering Support for Industrial Furnace Bearings
In addition to the initial product delivery, Lutco’s engineering team remains engaged with the client for ongoing optimization and support. Potential avenues for further improvement include alternative materials and lubricants to improve bearing resistance to gypsum dust penetration and heat degradation, which could further extend product lifespan in such abrasive conditions.
Scalable Bearing Solutions for New and Legacy Gypsum Furnaces
As the client considers furnace upgrades, Lutco is preparing to scale its bearing solution for a new generation of production equipment. This scalability ensures the continuity of reliable part supply, supporting the client’s evolving operational needs.
Lutco is committed to providing high-performance, engineered solutions tailored to the needs of industrial clients operating in challenging environments. By combining design optimization, robust quality control, and a customer-centric inventory strategy, Lutco has demonstrated its capability to deliver reliable, cost-effective products that exceed client expectations. For engineering teams seeking durable, custom solutions for high-demand applications, Lutco’s expertise sets a benchmark in precision and reliability.
