Banded Thrust Bearings

Banded Thrust Bearing (T)

  • Inch dimensional bearings
  • ID: .25 to 2.03 in.
  • OD: .844 to 3.34 in.

Lutco unground banded thrust ball bearings are designed for applications which have moderate speeds and thrust loads. Thrust bearings consist of a full complement of precision steel balls located between a pair of cold formed races. The entire assembly is captured by a soft steel band providing a fully unitized assembly. The band acts as a shield to help retain the lubricant and keep contaminants out.

Banded Thrust Bearing Features

  • Full complement of balls for maximum bearing capacity
  • Case carburized raceways for high wear resistance
  • Various band materials available
  • Grease packed
  • Various platings available for protection against corrosion
  • Upper raceway is free to rotate and has close fit with shafts
  • Lower raceway is fixed and has shaft clearance in the bore
  • Max Speed 1000 RPM

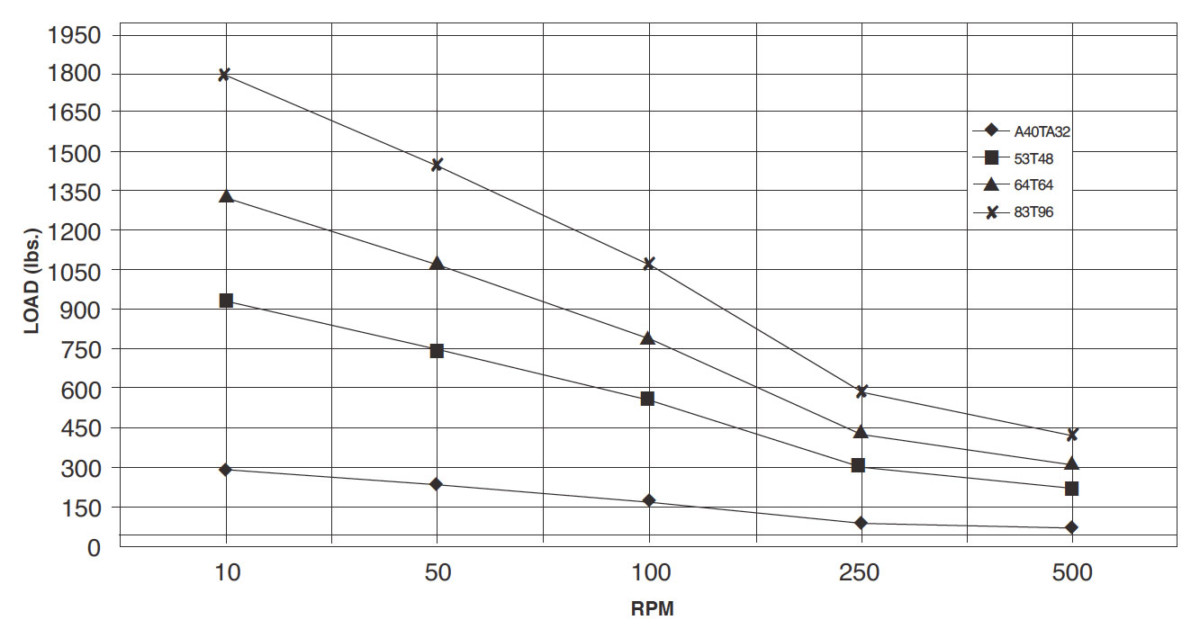

Thrust Load Ratings

thrust bearing load ratingIt is suggested that if there is a question regarding the Lutco bearing capacity for a specific application, please call (508) 756-6296.
